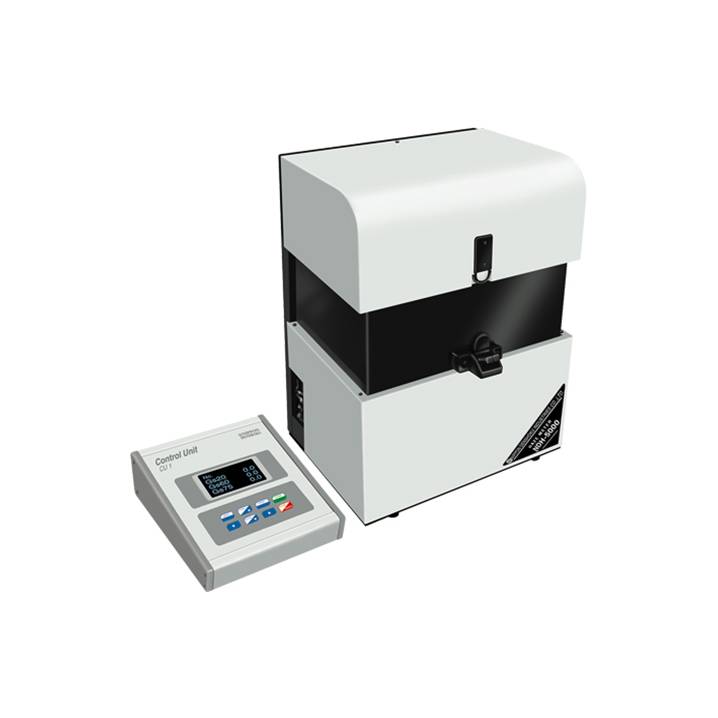

NDH-7000Ⅱ (구 NDH-5000)

2015-12-30 17:09:55

관리자

ＮＤＨ７０００.pdf (1.4M) [72] DATE : 2016-01-22 09:19:52

<div style="line-height: 1.8;"><b><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt; color: rgb(58, 50, 195);">☞ HAZE METER (탁도계)</span></b></div><div style="line-height: 1.8;"><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">- <font color="#ff0000">NDH-5000  모델이 NDH-7000 으로 기기명이 변경</font><br><font color="#ff0000">- 2018년 NDH-7000 ▶ <b>NDH-7000Ⅱ</b>로 기기명 변경</font></span></div><div style="line-height: 1.8;"><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;"> </span></div><div style="line-height: 1.8;"><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt; color: rgb(0, 0, 0);">측정항목 </span><br><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt; color: rgb(0, 0, 0);">Haze, 전광선투과율, 확산투과율, 평행투과율</span></div><p style="line-height: 1.8;"><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt; color: rgb(0, 0, 0);"> </span></p><div style="line-height: 1.8;"><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt; color: rgb(0, 0, 0);">LED 광원 / A4 Size 까지 측정 가능</span></div><p><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 11pt;"><b><span style="font-size: 10pt; color: rgb(58, 50, 195);"><br></span></b></span></p><p><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 11pt;"><b><span style="font-size: 10pt; color: rgb(58, 50, 195);"><br></span></b></span></p><p><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 11pt;"><b><span style="font-size: 10pt; color: rgb(58, 50, 195);"><br></span></b></span></p><p><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 11pt;"><b><span style="font-size: 10pt; color: rgb(58, 50, 195);">특징</span></b></span></p><p><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 11pt;"><b><span style="font-size: 10pt; color: rgb(58, 50, 195);"><br></span></b></span></p>
<table width="100%" border="0" cellspacing="0" cellpadding="0"><tbody><tr id="spec1"><td style="padding: 5px;" colspan="2"><font class="view_desc"><div style="width: 100%; overflow: auto; line-height: 1.8;"><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">① 흐림도(Haze), 전광선투과율, 확산투과율, 평행투과율, 탁도의 측정이 가능.</span><br><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">② 25mm x 25mm ~ 210mm x 297mm(A4 Size)까지의 시료 대응가능.</span><br><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">③ 시료에 따라 가로 및 세로 등의 설치가 가능.</span><br><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">④ 개구부에 해치형 트랩을 채용하여 높은 Haze에서도 안정적인 측정이 가능.</span><br><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">⑤ 장수명의 백색 LED 광원의 채용으로 램프교환 및 Running Cost가 대폭 감소.</span><br><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">⑥ 표시, 조작은 Control Unit(CU 2) 또는 PC제어 중에서 선택가능.</span><br><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">⑦ 측정경을 Φ7mm로 변경이 가능하며, 테퍼 마모시험에도 대응이 가능(옵션).</span><br><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">⑧ A4사이즈 이상의 시료의 경우, 밖으로 나온 상태에서도 측정이 가능.</span> </div></font></td></tr><tr id="spec2" style="display: none;"><td style="padding: 5px;" colspan="2"><font class="view_desc"><div style="width: 100%; overflow: auto;"><div><img style="border: currentColor; width: 640px; height: 309px;" alt="" src="http://gnbtech.co.kr/gboard/data/cheditor4/1204/28dfd3468d7d6a4135a3cde42f98b294_CpCS5n6UKWK.jpg"></div><br></div></font></td></tr><tr id="spec3" style="display: none;"><td style="padding: 5px;" colspan="2"><div style="width: 100%; overflow: auto;"><font class="view_desc"> <div class="MsoNormal" style="margin: 0cm 0cm 0pt;"><span lang="EN-US"><a href="http://gnbtech.co.kr/gboard/bbs/write.php?bo_table=5#_INDEX"><span style="font-family: '맑은 고딕'; font-size: 10.5pt;">NDH 5000</span></a></span><span style="font-family: '맑은 고딕'; font-size: 10.5pt;">은 각종 공업규격의 플라스틱 제품시험방법<span lang="EN-US">(JIS K 7136, JIS K 7361, ASTM D 1003)</span>에 근거하여<span lang="EN-US">, </span>흐림도<span lang="EN-US">(Haze), </span>전광선투과율<span lang="EN-US">, </span>확산투과율<span lang="EN-US">, </span>평행투과율<span lang="EN-US">, </span>탁도<span lang="EN-US">(Turb)</span>의 측정을 가능하게 한 헤이즈 미터입니다<span lang="EN-US">.<o:p></o:p></span></span></div><span lang="EN-US" style="font-family: " 맑은="" 고딕";="" font-size:="" 10.5pt;="" mso-ascii-theme-font:="" major-latin;="" mso-fareast-theme-font:="" mso-hansi-theme-font:="" mso-bidi-font-family:="" "times="" new="" roman";="" mso-font-kerning:="" 1.0pt;="" mso-ansi-language:="" en-us;="" mso-fareast-language:="" ko;="" mso-bidi-language:="" ar-sa;="" mso-no-proof:="" yes;"="">25mm x 25mm ~ 210mm x 297mm(A4 Size)</span><span style="font-family: " 맑은="" 고딕";="" font-size:="" 10.5pt;="" mso-ascii-theme-font:="" major-latin;="" mso-fareast-theme-font:="" mso-hansi-theme-font:="" mso-bidi-font-family:="" "times="" new="" roman";="" mso-font-kerning:="" 1.0pt;="" mso-ansi-language:="" en-us;="" mso-fareast-language:="" ko;="" mso-bidi-language:="" ar-sa;="" mso-no-proof:="" yes;"="">까지의 시료를 비파괴로 측정할 수 있으며<span lang="EN-US">, </span>조건에 부합시킨 가로 및 세로로 설치하여 측정할 수 있습니다<span lang="EN-US">. </span>기능성 수지<span lang="EN-US">, </span>광학필름<span lang="EN-US">, </span>포장재<span lang="EN-US">, Glass </span>등의 평가에 최적입니다<span lang="EN-US">.</span></span> </font></div></td></tr><tr id="spec4" style="display: none;"><td style="padding: 5px;" colspan="2"><div style="width: 100%; overflow: auto;"><font class="view_desc"> <div>측정경: 테퍼 마모시험용 어터치먼트, Φ7mm 등</div> </font> </div></td></tr><tr><td height="30" align="center" colspan="2"> </td></tr></tbody></table><p> </p>
<p><span style="font-family: 나눔고딕, NanumGothic, sans-serif;"><br>
</span></p>
<p><b style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 14.6667px; line-height: 22px;"><span style="font-size: 10pt; color: rgb(58, 50, 195);">사양</span></b></p><p><b style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 14.6667px; line-height: 22px;"><span style="font-size: 10pt; color: rgb(58, 50, 195);"><br style="clear:both;">
</span></b></p>
<p><b style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 14.6667px; line-height: 22px;"><span style="font-size: 10pt; color: rgb(58, 50, 195);"><br>
</span></b></p>
<p><b style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 14.6667px; line-height: 22px;"><span style="font-size: 10pt; color: rgb(58, 50, 195);">상세설명</span></b></p><p><b style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 14.6667px; line-height: 22px;"><span style="font-size: 10pt; color: rgb(58, 50, 195);"><br>
</span></b></p>
<div class="MsoNormal" style="margin: 0cm 0cm 0pt; line-height: 1.8;"><span lang="EN-US"><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;"><b><a href="http://gnbtech.co.kr/gboard/bbs/write.php?bo_table=5#_INDEX"><span style="color: rgb(0, 117, 200);">NDH 7000</span></a><span style="color: rgb(0, 117, 200);">Ⅱ</span></b></span></span><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">은 각종 공업규격의 플라스틱 제품시험방법<span lang="EN-US" style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">(JIS K 7136, JIS K 7361, ASTM D 1003)</span>에 근거하여<span lang="EN-US" style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">, </span>흐림도<span lang="EN-US" style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">(Haze), </span>전광선투과율<span lang="EN-US" style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">, </span>확산투과율<span lang="EN-US" style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">, </span>평행투과율<span lang="EN-US" style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">, </span>탁도<span lang="EN-US" style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">(Turb)</span>의 측정을 가능하게 한 헤이즈 미터입니다<span lang="EN-US" style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">.<o:p></o:p></span></span></div><p style="line-height: 1.8;"><span lang="EN-US" style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">25mm x 25mm ~ 210mm x 297mm(A4 Size)</span><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">까지의 시료를 비파괴로 측정할 수 있으며<span lang="EN-US" style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">, </span>조건에 부합시킨 가로 및 세로로 설치하여 측정할 수 있습니다<span lang="EN-US" style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">. </span>기능성 수지<span lang="EN-US" style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">, </span>광학필름<span lang="EN-US" style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">, </span>포장재<span lang="EN-US" style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">, Glass </span>등의 평가에 최적입니다<span lang="EN-US" style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">.</span></span><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;"> </span></p>
<p><font color="#3a32c3" face="나눔고딕, NanumGothic, sans-serif"><span style="font-size: 13.3333px; line-height: 22px;"><span style="font-family: 나눔고딕, NanumGothic, sans-serif; color: rgb(0, 0, 0);"><br>
</span></span></font></p>
<p style="line-height: 1.8;"><b style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 14.6667px; line-height: 22px;"><span style="font-size: 10pt; color: rgb(58, 50, 195);">옵션</span></b></p><p style="line-height: 1.8;"> </p>
<p style="line-height: 1.8;"><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;">측정경: 테퍼 마모시험용 어터치먼트, Φ7mm 등 </span></p><p style="line-height: 1.8;"><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;"> </span></p><p style="line-height: 1.8;"><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;"> </span></p><p style="line-height: 1.8;"><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;"> </span></p><p style="line-height: 1.8;"><span style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 10pt;"> </span></p>
<p style="line-height: 1.8;"><b style="font-family: 나눔고딕, NanumGothic, sans-serif; font-size: 14.6667px; line-height: 22px;"><span style="font-size: 10pt; color: rgb(58, 50, 195);"><br>
</span></b></p>
<p style="line-height: 1.8;"></p>

[이 게시물은 관리자님에 의해 2020-10-23 16:11:43 HAZE관련기기에서 복사 됨]
